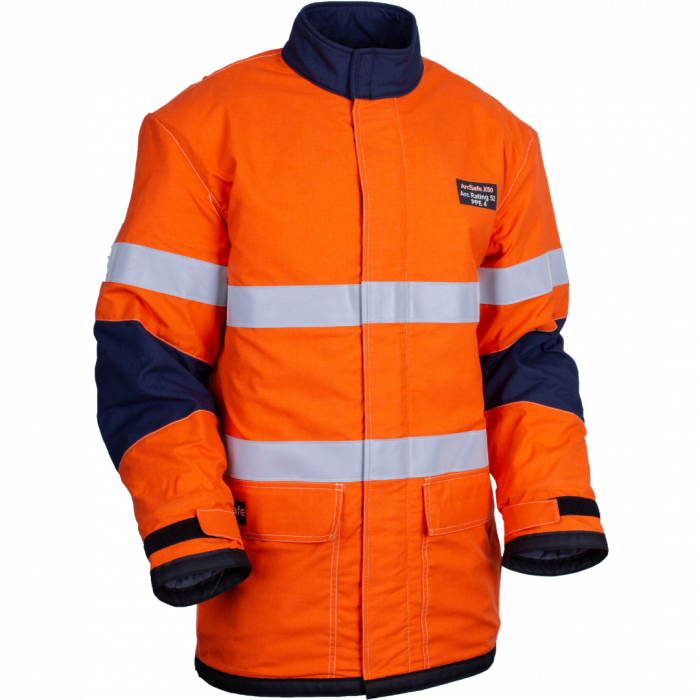

ArcSafeĀ® X50 ArcFlash Switching Jacket with Reflective Trim

The ArcSafeĀ® X50 ArcFlash Switching Jacket is made from orange etekā„¢ NXTā„¢ and T-GardĀ® III Plus thermal liner with an ATPV 52 PPE4 (HRC4) and includes Silver FR Reflective trim. This new fabric system is ideal for hot conditions and wicks moisture away from the body improving wearer comfort. The ergonomic design includes an action back, underarm gussets, and articulated sleeves for a greater range of movement and improved comfort levels.

Ā

Features

  • Length 870mm
  • Silver FR Reflective trim
  • Ergonomic design includes an action back, underarm gussets, and articulated sleeves for a greater range of movement and improved comfort levels.
  • Heavy duty zipper and hook + loop closure system
  • Internal Nomex knitted wristers with hook + loop closure tab
  • Reinforced sleeve cuffs and coat hem for greater durabilityĀ

Ā

Standards and Certifications


Product Documents

Part Number
Sizes
EASCJX50T1SML
SML
EASCJX50T1MED
MED
EASCJX50T1LRG
LRG
EASCJX50T1XLG
XLG
EASCJX50T12XL
2XL
EASCJX50T13XL
3XL

ArcSafeĀ® X50 ArcFlash Switching Jacket with Reflective Trim


The ArcSafeĀ® X50 ArcFlash Switching Jacket is made from orange etekā„¢ NXTā„¢ and T-GardĀ® III Plus thermal liner with an ATPV 52 PPE4 (HRC4) and includes Silver FR Reflective trim. This new fabric system is ideal for hot conditions and wicks moisture away from the body improving wearer comfort. The ergonomic design includes an action back, underarm gussets, and articulated sleeves for a greater range of movement and improved comfort levels.



X50 Materials

  • Outer Fabric: 180gsm etekā„¢ NXTā„¢
  • Lining Fabric: 310gsm T-GardĀ® III Plus


Features

  • Length 870mm
  • Silver FR Reflective trim
  • Ergonomic design includes an action back, underarm gussets, and articulated sleeves for a greater range of movement and improved comfort levels
  • Heavy duty zipper and hook + loop closure system
  • Internal Nomex knitted wristers with hook + loop closure tab
  • Reinforced sleeve cuffs and coat hem for greater durability



Important - NFPA 70E Compliance requires wearing of the whole system (3-piece) as ONE UNIT. 3 Pieces including hood, coat and leggings or hood, jacket and bib & brace trousers. Once a garment has been exposed to an arc flash, it must be removed from service.



Find other arc flash safety gear in our Arc Flash Clothing & Equipment section

Discover More About Our Safety Products



Explore our extensive range of Personal Protective Equipment by visiting our Reference Centre.

If you need more information or have any questions, feel free to call us at 07 3265 2944 or send us a message.

Stay connected with us on:

Facebook button YouTube button Twitter button

Standards and Certifications



The ArcSafeĀ® X50 Arc Switching range's fabric system isideal for hot conditions and wicks moisture away from the body improving wearer's comfort.



  • This ArcSafeĀ® Arc Flash protective garment has been independently tested by Kinectrics to:
    • ASTM F2621-19 Standard Practice for Determining Response Characteristics and Design Integrity of Arc Rated Finished Products in an Electric Arc Exposure.
    • IEC 61482-1-2 - Box Testing Class 2
  • This ArcSafeĀ® Arc Flash protective garment complies to AS4602.1:2011 High Visibility Safety Garments: Garments for high risk applications.
  • X50 Garments comply with the Personal Protective Equipment requirements of AS 4836:2011 Safe working on or near low-voltage electrical installations and equipment and ENA NENS 09 -2014  National Guideline for the Selection
  • The X50 fabric ensemble has been independently tested by Kinetrics to ASTM F1506 Standards for Flame Resistant Fabrics - ASTM F1506 & IEC 61482-1 Method A - Fabrics.
  • This garment with reflective trim added is certified to Australian Standard AS/NZS 4602.1:2011 High Visibility Safety Garments Class D/N by BSI.
