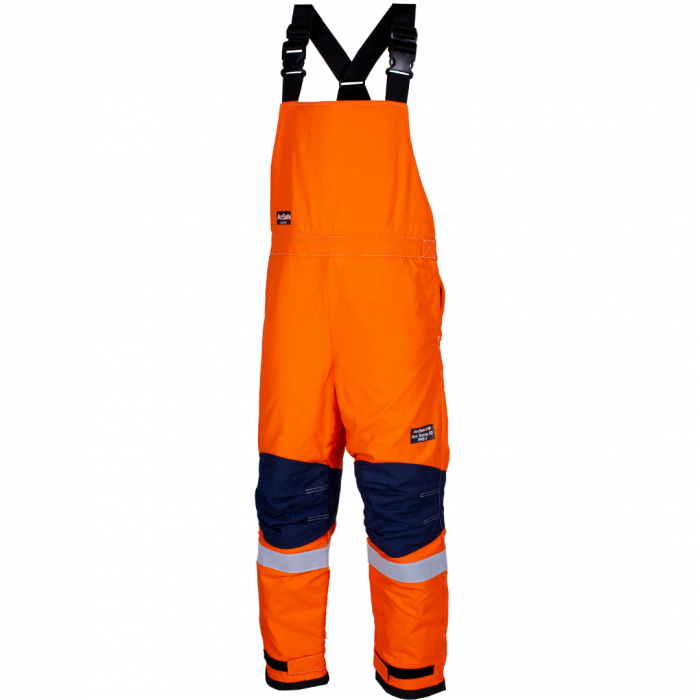

ArcSafe® X50 ArcFlash Switching Bib & Brace Trousers with Reflective Trim

The ArcSafe® X50 ArcFlash Switching Trouser is made from orange etek™ NXT™ and T-Gard® III Plus thermal liner with an ATPV 52 PPE4 (HRC4) and includes Silver FR Reflective tape. This new fabric system is ideal for hot conditions and wicks moisture away from the body improving wearer comfort. The ergonomic design includes articulated knees for a greater range of movement and improved comfort levels. Bib and brace design with 50mm wide braces and side tab closures for a snug fit.



Features

  • Bib & brace design
  • Silver FR Reflective trim
  • Ergonomic articulated knees for a greater range of movement and improved comfort levels
  • 50mm heavy duty braces
  • Hook + loop side closure tabs for a snug fit
  • Legg cuff hook + loop closure tabs



Standards and Certifications


Product Documents

Part Number
Sizes
EASCTX50T1SML
SML
EASCTX50T1MED
MED
EASCTX50T1LRG
LRG
EASCTX50T1XLG
XLG
EASCTX50T12XL
2XL
EASCTX50T13XL
3XL

ArcSafe® X50 ArcFlash Switching Bib & Brace Trousers with Reflective Trim


The ArcSafe® X50 ArcFlash Switching Trouser is made from orange etek™ NXT™ and T-Gard® III Plus thermal liner with an ATPV 52 PPE4 (HRC4) and includes Silver FR Reflective tape. This new fabric system is ideal for hot conditions and wicks moisture away from the body improving wearer comfort. The ergonomic design includes articulated knees for a greater range of movement and improved comfort levels. Bib and brace design with 50mm wide braces and side tab closures for a snug fit.



X50 Materials

  • Outer Fabric: 180gsm etek™ NXT™
  • Lining Fabric: 310gsm T-Gard® III Plus



Features

  • Bib & brace design
  • Silver FR Reflective trim
  • Ergonomic articulated knees for a greater range of movement and improved comfort levels
  • 50mm heavy-duty braces
  • Hook + loop side closure tabs for a snug fit
  • Legg cuff hook + loop closure tabs



Important - NFPA 70E Compliance requires wearing of the whole system (3-piece) as ONE UNIT. 3 Pieces including hood, coat and leggings or hood, jacket and bib & brace trousers. Once a garment has been exposed to an arc flash, it must be removed from service.



Find other arc flash safety gear in our Arc Flash Clothing & Equipment section

Discover More About Our Safety Products



Explore our extensive range of Personal Protective Equipment by visiting our Reference Centre.

If you need more information or have any questions, feel free to call us at 07 3265 2944 or send us a message.

Stay connected with us on:

Facebook button YouTube button Twitter button

Standards and Certifications



The ArcSafe® X50 Arc Switching range's fabric system is ideal for hot conditions and wicks moisture away from the body improving wearer's comfort.



  • This ArcSafe® Arc Flash protective garment has been independently tested by Kinectrics to:
    • ASTM F2621-19 Standard Practice for Determining Response Characteristics and Design Integrity of Arc Rated Finished Products in an Electric Arc Exposure.
    • IEC 61482-1-2 - Box Testing Class 2
  • This ArcSafe® Arc Flash protective garment complies to AS4602.1:2011 High Visibility Safety Garments: Garments for high risk applications.
  • X50 Garments comply with the Personal Protective Equipment requirements of AS 4836:2011 Safe working on or near low-voltage electrical installations and equipment and ENA NENS 09 -2014  National Guideline for the Selection
  • The X50 fabric ensemble has been independently tested by Kinetrics to ASTM F1506 Standards for Flame Resistent Fabrics - ASTM F1506 & IEC 61482-1 Method A - Fabrics.
  • This garment with reflective trim added is certified to Australian Standard AS/NZS 4602.1:2011 High Visibility Safety Garments Class D/N by BSI.

Brand ArcSafe
Colour Orange
Itemtype Trouser
Matliner T-Gard III Plus
Outer ETEK NXT
Standards 0
