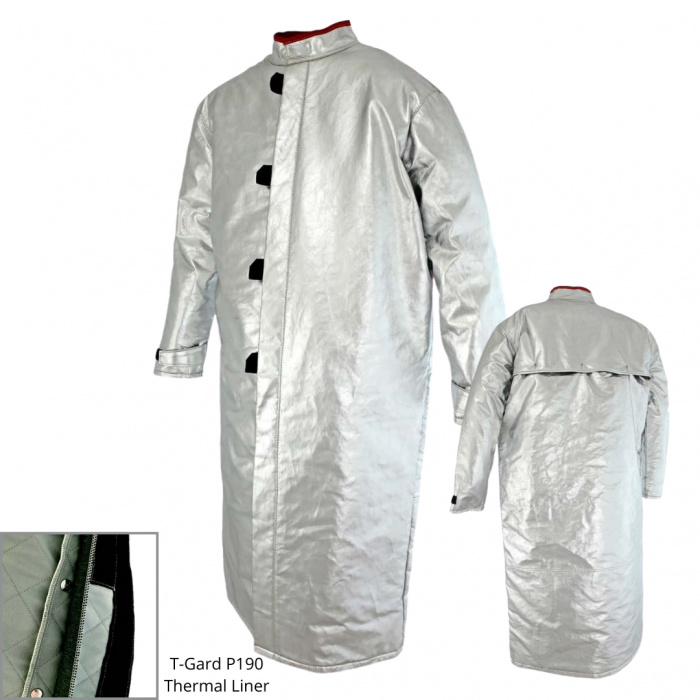

Foundry Jacket - 1300mm Centre Closure Vented Action Back Lined

The Elliotts FJV130L lined furnace jacket features a centre front closure with a vented action back for greater movement. The T-Gard P190 Thermal Liner has been specifically designed for Furnace PPE. This design is a generous fit and provides the wearer with 360 degrees of protection and is available in 3 different fabric options.



Features

  • Standard design with action back for extra mobility.
  • Vented back section for extra air circulation and comfort
  • Centre front closure with 50mm flame-resistant hook + loop closure with press studs and pull tabs
  • Sewn with heat resistant aramid thread for extra durability.
  • Length 1300mm
  • The T-Gard P190 is light weight and offers excellent thermal protection
  • Proban lined collar for additional comfort which helps manage perspiration



Standards and Certifications




Product Documents

Part Number
Sizes
Outer
FAR530LJV130SML
SML
Aluminised Aramid AR530
FCA340LJV130SML
SML
Aluminised Carbon Aramid CA340
FAR530LJV130MED
MED
Aluminised Aramid AR530
FCA340LJV130MED
MED
Aluminised Carbon Aramid CA340
FPR720LJV130MED
MED
Aluminised Preox PR720
FAR530LJV130LRG
LRG
Aluminised Aramid AR530
FCA340LJV130LRG
LRG
Aluminised Carbon Aramid CA340
FPR720LJV130LRG
LRG
Aluminised Preox PR720
FAR530LJV130XLG
XLG
Aluminised Aramid AR530
FCA340LJV130XLG
XLG
Aluminised Carbon Aramid CA340
FPR720LJV130XLG
XLG
Aluminised Preox PR720
FAR530LJV1302XL
2XL
Aluminised Aramid AR530
FCA340LJV1302XL
2XL
Aluminised Carbon Aramid CA340
FPR720LJV1302XL
2XL
Aluminised Preox PR720
FAR530LJV1303XL
3XL
Aluminised Aramid AR530
FCA340LJV1303XL
3XL
Aluminised Carbon Aramid CA340
FPR720LJV1303XL
3XL
Aluminised Preox PR720
FAR530LJV1304XL
4XL
Aluminised Aramid AR530
FCA340LJV1304XL
4XL
Aluminised Carbon Aramid CA340
FPR720LJV1304XL
4XL
Aluminised Preox PR720
FAR530LJV1305XL
5XL
Aluminised Aramid AR530
FCA340LJV1305XL
5XL
Aluminised Carbon Aramid CA340
FPR720LJV1305XL
5XL
Aluminised Preox PR720
FAR530LJV1306XL
6XL
Aluminised Aramid AR530
FCA340LJV1306XL
6XL
Aluminised Carbon Aramid CA340
FPR720LJV1306XL
6XL
Aluminised Preox PR720

Foundry Jacket 1300mm Centre Closure Vented Action Back - Lined


The Elliotts FJV130L furnace jacket features a centre front closure with a vented action back for greater movement and air circulation. This design is a generous fit and provides the wearer with 360 degrees of protection and is available in 3 different fabric options.



Features

  • Standard design with action back for extra mobility
  • Vented back section for extra air circulation and comfort
  • Centre front closure with 50mm flame-resistant hook + loop closure with press studs and pull tabs
  • Sewn with heat resistant aramid thread for extra durability
  • Length 1300mm
  • The T-Gard P190 is light weight and offers excellent thermal protection
  • Proban lined collar for additional comfort which helps manage perspiration


Material Options



This jacket is available in 3 different aluminised materials with the addition of the T-Gard P190 Thermal Liner:



  • CA340 - Aluminised Carbon / Aramid + T-Gard P190 - 770gsm
  • PR720 - Aluminised Preox (Pro-oxidised acrylic) + T-Gard P190 - 1150gsm
  • AR530 - Aluminised Aramid + T-Gard P190 - 960gsm


The T-Gard P190 Thermal Liner has been specifically designed for Furnace PPR and is exclusive to Elliotts. T-Gard P190 is lightweight and offers excellent thermal protection. The face fabric is a Proban FR 100% Cotton which provides a comfortable FR material against the body that can easily wick away moisture. The thermal batting is 100% Nomex.



Find other foundry protective gear in our Furnace Clothing section

Discover More About Our Safety Products



Explore our extensive range of Personal Protective Equipment by visiting our Reference Centre.

If you need more information or have any questions, feel free to call us at 07 3265 2944 or send us a message.

Stay connected with us on:

Facebook button YouTube button Twitter button

Standards and Certifications

Foundry work such as charging, taping and pouring molten metal can expose workers to dangerous thermal hazards and burn injuries. Elliotts range of Foundry PPE is either manufactured to meet the requirements of ISO 11612:2015 Protective Clothing - Clothing to protect again heat and flame or is made of materials independently tested to meet the standard.



Brand ELLGARD
Colour Aluminised
Itemtype Jacket
Matliner T-Gard P190
Standards ISO 11612
