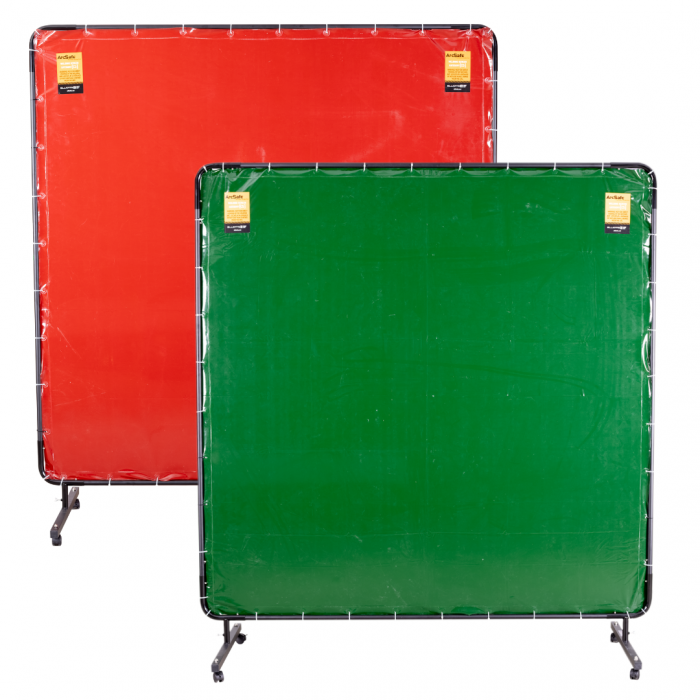

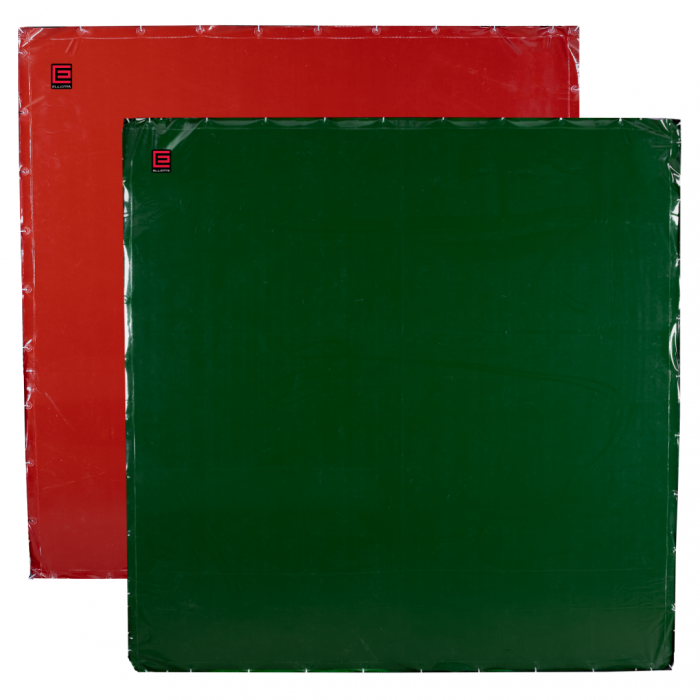

ArcSafe® Welding Screens

ArcSafe® welding screens absorb the dangerous ultraviolet light that is emitted from the arc welding process. The Elliotts ArcSafe® welding screens are manufactured from a vinyl film, processed with a colour dye, a flame retardant, and an ultraviolet absorber.



Features

  • Surrounding your welding situations with safety
  • Protecting your co-workers and other people from the painful effects of accidental welding flash
  • Safely and quickly defining hazardous welding areas
  • Allowing safe observation for a safety check of welding operations
  • All seams are welded, not sewn, for extra durability and strength
  • Fitted with eyelets every 200mm



Available in

  • Red or Green vinyl
  • 7 standard sizes
  • Special sizes on request
  • By the roll on request



** Screens and Frames are sold separately **




Product Documents

Part Number
Sizes
Colour
STS1813G
1800 x 1300
Green
STS1813R
1800 x 1300
Red
STS1818G
1800 x 1800
Green
STS1818R
1800 x 1800
Red
STS1820G
1800 x 2000
Green
STS1820R
1800 x 2000
Red
STS1826G
1800 x 2600
Green
STS1826R
1800 x 2600
Red
STS1839G
1800 x 3900
Green
STS1839R
1800 x 3900
Red
STS1845G
1800 x 4500
Green
STS1845R
1800 x 4500
Red
STS1852G
1800 x 5200
Green
STS1852R
1800 x 5200
Red

ArcSafe® Welding Screens



ArcSafe® welding screens absorb the dangerous ultraviolet light that is emitted from the arc welding process. The Elliotts ArcSafe® welding screens are manufactured from a vinyl film, processed with a colour dye, a flame retardant and an ultraviolet absorber.



Features

  • Surrounding your welding situations with safety
  • Protecting your co-workers and other people from the painful effects of accidental welding flash
  • Safely and quickly defining hazardous welding areas
  • Allowing safe observation for a safety check of welding operations
  • All seams are welded, not sewn, for extra durability and strength
  • Fitted with eyelets every 200 mm



** Screens and Frames are sold separately **



The ArcSafe® welding screen is manufactured from a vinyl film, and processed with a colour dye, a flame retardant and an ultraviolet absorber. The dye consumes and filters the blue light brightness associated with the electric arc welding process. The material surface acts as a reflector, causing the arc to appear larger and less bright, thus reducing glare to the eyes. The light is also scattered in different directions, creating a fluorescent light. This causes the pupil to constrict and shut out excess glare, therefore reducing light to the retina.



Discover More About Our Safety Products



Explore our extensive range of Personal Protective Equipment by visiting our Reference Centre.

If you need more information or have any questions, feel free to call us at 07 3265 2944 or send us a message.

Stay connected with us on:

Facebook button YouTube button Twitter button

This product does not have any standards or certifications.
Brand ArcSafe
Itemtype Screen
Outer PVC
